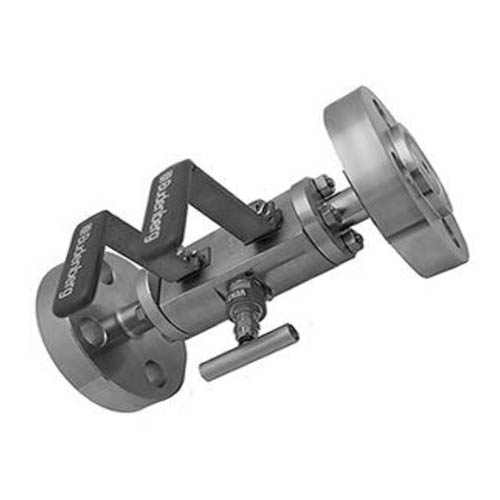

The model MVF is a three piece modular valve that can be readily configured into a full range of Single or Double Block and Bleed Valves that provide primary isolation when directly mounted onto process pipework or vessels. The MVF has industry standard flange or hub flanged inlet and outlet connections and a screwed or flanged vent connection to suit any application requirement.

Its modular design enables units to have flanged ends of different types, sizes, ratings and materials to be cost effectively be manufactured. The design of the end connections incorporate the detail that directly secures the Ball Assembly in position thereby ensuring a single piece of material up to and including the first Primary Isolation Valve in line with the necessary standards.

The flexibility of the MVF Valve therefore provides a cost effective yet limitless choice of configurations and materials that make it the perfect choice for your primary isolation requirements. All units can be supplied with a full range of testing, certification and documentation to meet any project requirement.
