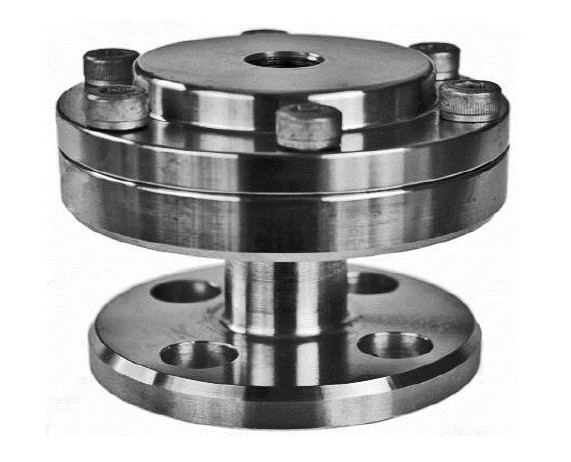

The CFN is a high integrity Diaphragm Seal Gauge designed to withstand the high pressures and temperatures normally associated with Chemical and Oil / Gas applications. The CFN has a diaphragm clamped between the upper and lower chambers thereby optimising the use of exotic materials for the wetted parts

A unique feature of the unit is the ability to set the diaphragm to ‘lock off’ at set pressures thereby protecting the unit from major overload conditions up to and including 400 Bar. This eliminates the need for expensive overload protection valves.

Available in a wide range of options including a choice of dial sizes, connections, materials, filling fluids and options to permit operation at temperatures in excess of 440 Degrees Celsius.
