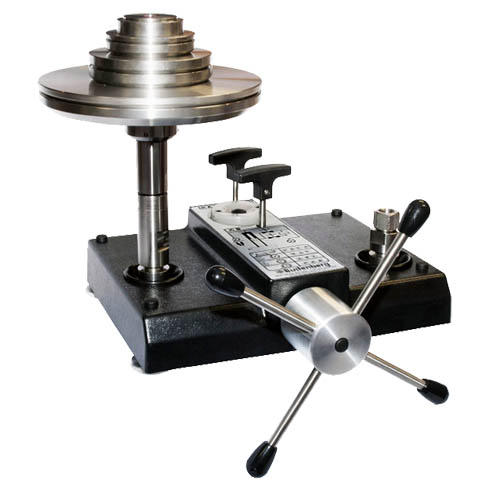

The BGH series base can be used with any of the BGH series pistons to give ranges 1-120 bar with a BGH120, 2-300 bar with a BGH300, 1-700 bar with a BGH700 and 1-1200 bar with a BGH1200. All units are top loading for ease of use and weight sets are fully interchangeable. This means that the weight sets in alternative pressures are readily available and customers with more than one BGH series tester can interchange weight sets between a tester of the same range.
The base features a dual area screwpress which allows low pressure priming and high pressure control. The BGH300 is a proven design using a 1/40in2 fully hardened and stabilised tool steel piston/cylinder unit.
The design incorporates an auxiliary piston unit which minimises the possibility of damage to the measuring system. This makes the unit sensitive enough to for accurate calibration and robust enough for heavy industrial use.
